Wire Nuts

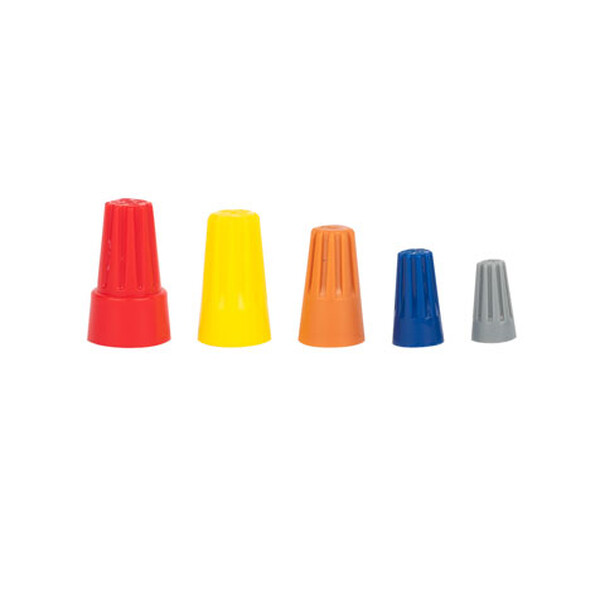

  • Bulk Wire Nuts

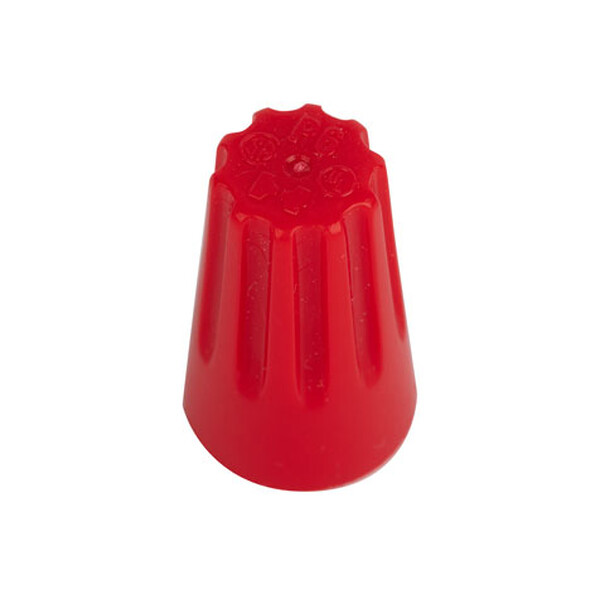

  • Electrical Twist Caps
  • Electrical Wire Screw Caps
  • Bulk Wire Nuts
  • Electrical Twist Caps
  • Electrical Wire Screw Caps
  • Material of a wire nut: PVC, threaded, heat-resistant, and insulated.

  • Rated voltage of cable nuts: 450V.

  • Rated current of insulated wire nuts: 24A.

  • Voltage resistance of electrical wire nut connectors: 4kV.

  • Ambient temperature of plastic wire nuts: -40℃~+105℃.

  • Use of wire cable nut: Put the joint of two-wire into the cap and screw until it is tight, wall to secure the cable.

  • Application of wire nut: Wire Joining.

Drawings of Wire Nuts

Drawings of Screw On Wire Connectors

Technical Specification Of Wire Nuts

ITEM NO.HBCAPPROX WIRE SIZEWire diameterSTANDARD PACKING
MMMMMM
P115.09.07.00.1-1.0MM²(AWG22-18)0.2-2.5MM²100PCS/500PCS/1000PCS
P218.010.08.01.0-1.5MM²(AWG18-16)0.5-2.5MM²
P323.011.010.01.5-2.5MM²(AWG16-14)0.5-4MM²
P424.014.011.02.5-4MM²(AWG14-12)0.5-6MM²
P632.018.014.010-16MM²(AWG6)0.5-10MM²


bulk wire nuts
