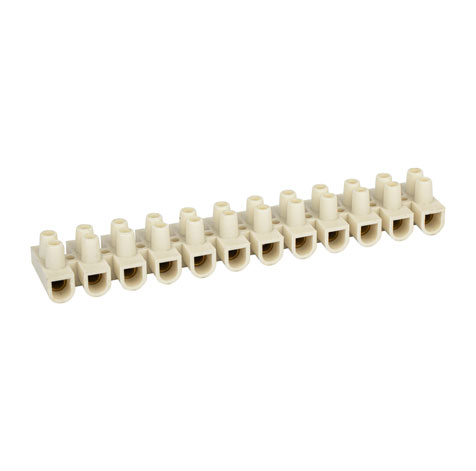

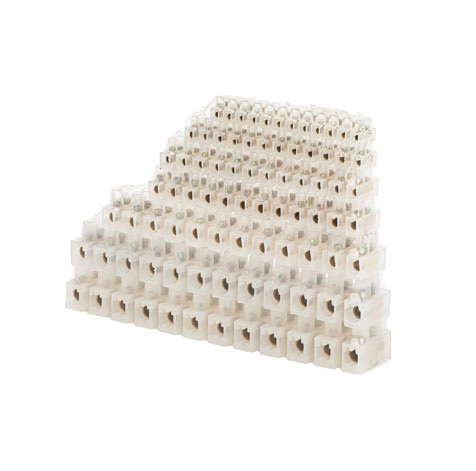

U-TYPE Terminal Blocks

  • U-TYPE Terminal Blocks
  • Wire To Wire Terminal Blocks
  • Wire To Wire Terminal Blocks
  • U-TYPE Terminal Blocks
  • Wire To Wire Terminal Blocks
  • Wire To Wire Terminal Blocks
  • Material:

PE, Working Temperature:- 40ºC to 65ºC, short time is 80ºC.

PP, Working Temperature:- 30ºC to 90ºC, short time is 110ºC.

PA,Working Temperature:- 35ºC to 120ºC, short time is 140ºC.

Brass, Iron screw.


  • Voltage: 250 - 450V


  • Color:Natural, White, Black.


  • HS Code: 8536900000


  • Usage: Peel the coat of wire, then insert to tube, use pincers to fix them.


  • Feature of wire to wire terminal blocks: Nylon shell, long copper tube, easy to conduct electricity and hold wire tight.

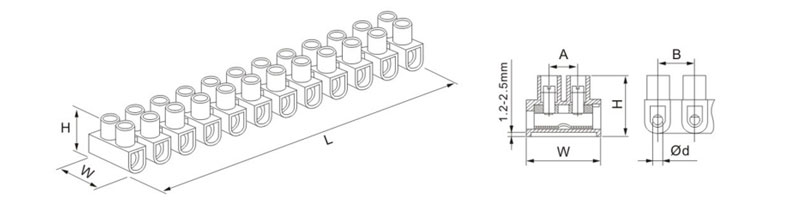

Drawings of U-TYPE Terminal Blocks

Drawings of U-TYPE Terminal Blocks

Technical Specification Of U-TYPE Terminal Blocks

To find the right specification user need,check this data sheet for need rated current and section size.

ITEM NO.Rated currentSection sizeDimnension
AMM²L(MM)W(MM)H(MM)A(MM)B(MM)DIA(MM)
W-332.5/49214.911.74.183.0
W-66611016.512.856.69.63.3
W-10101012.719.3515.47.111.13.7
W-15151213422.317.28.311.54.2
W-20201414422.517.48.6512.24.5
W-30301616324.9199.114.15.5
W-60602518728.6521.411.2166.3
W-80803020835.829.1512.2187.4
